CSR Management: Life Beyond Spreadsheets

The ASIC, ASSP, and system-on-chip (SoC) design landscape has undergone significant evolution over the past two decades. For example, while early devices contained only tens of intellectual property (IP) blocks, modern high-end SoCs may integrate up to 1000 IPs, each containing millions of logic gates.

Furthermore, unlike their predecessors, today’s SoCs are no longer primarily hardware; instead, they include a substantial software component. This software often accounts for 70% to 80% of the development effort, with software verification and integration becoming as critical as the hardware design itself.

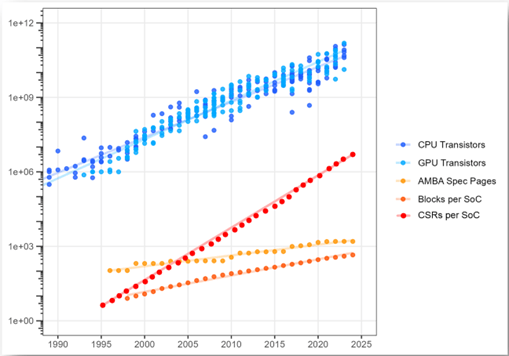

Fig. 1: The increasing complexity of SoC design. (Source: Arteris)

As a result, these systems have grown exponentially in complexity, requiring seamless integration and interaction between hardware and software components. One of the most critical aspects of this is managing the control and status register (CSR) portion of the design (Figure 1). These registers enable processors, both on-chip and external to the chip, to configure and control the operation of the IP blocks, passing data in and out as required. A high-end SoC can include anywhere from 200,000 to over 5 million CSRs, each containing multiple fields and bits. This immense scale presents considerable challenges in terms of design, verification, and software development.

The hardware-software interface (HSI), represented physically by the CSRs, has become a major concern. A significant portion of design failures can be attributed to the mismanagement of these registers. As many as one in seven SoCs require re-spins due to errors in the HSI. Addressing this issue demands a robust and automated approach to CSR definition and management.

The problem

Managing CSRs effectively is a multifaceted challenge. IP blocks often originate from multiple vendors, each using different documentation formats such as IP-XACT, SystemRDL, spreadsheets, or proprietary specifications. Integrating these diverse sources into a cohesive design framework is a daunting task.

Compounding this issue, SoC development involves multiple teams, including system architects, hardware designers, software developers, verification engineers, and technical writers, who frequently work in silos. Any miscommunication or misalignment in CSR definitions can lead to severe consequences, including failed software drivers, hardware/software mismatches, and costly silicon re-spins.

Common pitfalls in CSR management include modifying reset values of CSR bits or fields without proper documentation, which can lead to unexpected behavior during system initialization. Relocating or renaming CSRs without notifying software teams often results in mismatches between hardware and software implementations. Adding or removing CSRs without updating all relevant documentation introduces inconsistencies that can disrupt verification and software bring-up. Changing bit positions within a CSR may cause software to read or write incorrect data, leading to functional errors. Additionally, failing to define the correct access sequences for CSR operations can compromise both functionality and reliability.

These risks escalate without a centralized and automated approach to CSR management. Traditional methods, such as manually maintaining spreadsheets or writing custom scripts, are reaching their practical limits, leading to inefficiencies, errors, and wasted engineering resources.

The ideal solution

An ideal solution to overcome these limitations and address the growing complexity of SoC designs could be a unified and automated framework for managing the HSI. This type of system would allow design teams to work from a common source, which would help reduce inconsistencies and minimize the risk of errors throughout the development cycle. It could support alignment among hardware, software, and verification teams by providing a consistent and authoritative foundation for register information.

By automating the definition, verification, and distribution of CSR data, the solution would streamline collaboration and simplify integration. As today’s SoC designs continue to evolve, such a framework could become essential for scaling development efforts and avoiding the delays and risks associated with manual CSR management.

Fig. 2: Magillem Registers provides a single source of truth that supports a unified specification and compilation flow. (Source: Arteris)

One framework that could meet these needs is Magillem Registers from Arteris. It is built to handle the full range of CSR management challenges. The tool provides a single source of truth for register data throughout the SoC design process. Instead of relying on manual updates or disconnected tools, Magillem Registers creates a unified platform for hardware, software, and verification teams, as shown in Figure 2. It helps teams stay aligned and reduces the risk of costly errors.

Key benefits of Magillem Registers include:

• Correct-by-Construction RTL Generation: Ensures that hardware representations of CSRs are accurate and aligned with software expectations.
• Extensive Error Checking: The tool performs over 1,000 functional, behavioral, syntactic, and semantic checks to validate CSR definitions, ensuring that any errors are caught early in the design cycle.
• Multi-Format Support: Magillem Registers ingests CSR data from multiple sources, including IP-XACT, SystemRDL, and spreadsheets, and generates outputs tailored to each engineering discipline.
• CSRSpec Format: In addition to supporting industry-standard formats, Magillem Registers also supports Arteris’ CSRSpec, a format capable of handling more hardware-software behavioral combinations than most existing standards.
• Scalability and Performance: The tool can compile 100,000 registers in seconds and scale up to 5 million registers in minutes, making it suitable for the most complex SoCs.
• Python API for Custom Integration: Teams can extend Magillem Registers’ capabilities by writing their own automation scripts, further streamlining their workflows.

By leveraging Magillem Registers, SoC design teams can greatly reduce the risks associated with CSR mismanagement, improving design accuracy, efficiency, and time-to-market.

Conclusion

Traditional methods of managing control and status registers are no longer sufficient. The risks of miscommunication, inconsistencies, and design errors demand an automated and standardized approach.

Arteris’ Magillem Registers provides a comprehensive solution to these challenges. By unifying CSR definitions, automating documentation generation, performing rigorous error checking, and supporting industry-standard formats, the product enables SoC teams to work more efficiently and accurately.

For designers, architects, verification engineers, CAD teams, and technical writers, a structured and automated approach to register management streamlines workflows and helps prevent costly errors. To learn more about how this solution can enhance your SoC development process, visit Arteris Magillem Registers.

This product is fully integrated with Magillem Connectivity and Arteris’ suite of non-coherent network-on-chip (NoC) IP, including FlexWay, FlexNoC, and FlexGen smart NoC IP.
