NOP Flit Payload: A Dedicated Debug Channel

Modern PCIe systems are complex, with high-speed data transfer and intricate protocols. Traditional debug methods often struggle to provide the necessary granularity and real-time visibility into link behavior. Transient issues, timing-sensitive errors, and protocol interactions can be difficult to pinpoint with conventional methodology. NOP Flit addresses this challenge.

PCIe Gen 6 introduces a powerful new capability that aid link-level debug: NOP Flit Payloads. PCIe Gen 6’s NOP Flit Payloads provides a dedicated, low-level channel for transmitting debug information. This allows engineers to peer into the workings of the link, capturing a granular view of its operation. First time the debug information is exchanged on the link.

What are NOP Flit Payloads?

“No Operation” (NOP) Flit Payload – specialized data packets designed to carry debug information without interfering with normal data transfer. These NOP flits are transmitted by the Physical Layer, operating independently of the higher-level protocol layers. This independence is crucial, as it ensures that debug information can be conveyed even when the link is experiencing problems that might disrupt the regular flow of transactions.

NOP Flit Payload structure and types

A NOP Flit Payload comprises a one Double Word (DW) NOP Flit Common Header, and a NOP Flit Type Payload section. The NOP Flit Type Payload content varies:

• NOP.Empty Flit: The most basic type, containing a payload of all zeros. It’s primarily for padding and alignment.
• NOP.Debug Flit: Carries debug information organized into Debug Chunks, each with a header and a vendor-defined payload.
• NOP.Vendor Flit: Enables vendors to define their own proprietary payload formats for vendor-specific debug information.

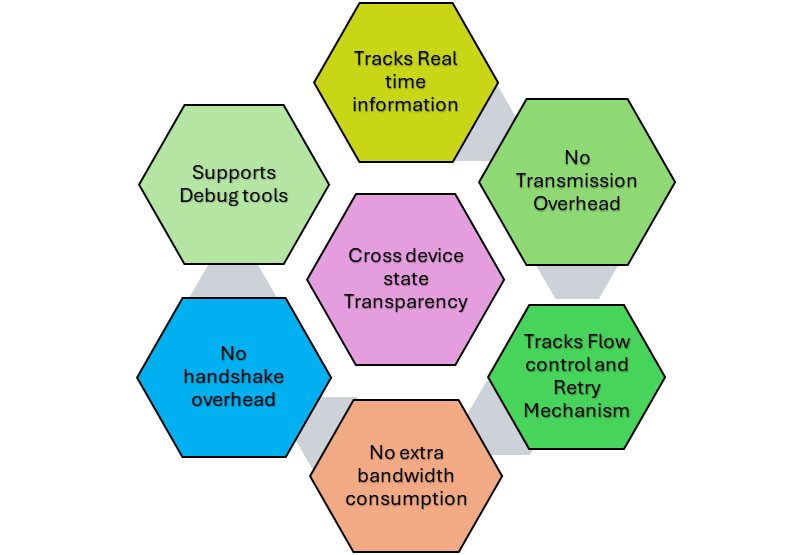

Key benefits of NOP Flit Payloads

• Real-time Information Delivery: Transmits debug data without interfering with normal traffic, enabling real-time link monitoring.
• No Transmission Overhead: Avoids flow control credit checks, ensuring efficient transmission of debug information.
• Flow Control Insights: Monitors flow control parameters to provide insights into credit allocation and potential bottlenecks.
• Retry Mechanism Visibility: Tracks retry buffer status and retransmission activity, aiding in diagnosing link errors and instability.
• Cross-Layer Transparency: Offers visibility into internal states of protocol layers (Transaction, Data Link, and Physical) for comprehensive analysis.
• No Extra Bandwidth Consumption: Debug information is shared cross the device within NOP Flit Payloads and no response of ACK/NAK is expected across the linked devices.
• Debug Tool Support: Designed for easy capture and interpretation by debug tools like Logic Analyzers.

Examples of NOP Flit Payload usage

• Vendors can use NOP.Vendor Flits to transmit custom performance counters or diagnostic data.
• System engineers can use NOP.Debug Flits to monitor buffer and queue status within a switch.
• Protocol analyzers can use NOP.Debug Flits to trigger capture events based on specific link conditions.

Key verification criteria

Verification engineer must ensure the correct parsing and handling of NOP Flit Payload as per flit type NOP.Empty, NOP.Debug, NOP.Vendor:

• Identify the correct Flit type.
• Ensure NOP.Debug Flits carries the valid PCI-SIG Debug Chunks and content of Debug chunk is aligned debug chunk fields.
• NOP Flit counters correctly incremented even after rollover.
• NOP Stream ID should identify the source of transmitter, and it must be consistent across the stream.
• Debug Chunk headers use the PCI-SIG opcodes.
• Transmission of NOP Flit Payload must be based on enabled Debug Opcodes and Debug Flit Maximum Rate Hint.
• NOP Flit Payloads never trigger the retry mechanism.
• Any malformed NOP Flit Payload logged as Data Link Protocol Error.

Conclusion

NOP Flit Payloads significantly advance PCIe debug by providing a dedicated channel for detailed link information. Verification plays a crucial role in ensuring the correct parsing and handling and transmission of these NOP Flit Payload. This empowers engineers to address the increasing complexity of PCIe systems, leading to faster development cycles, more robust designs, and optimized performance. By offering transparent, customizable, real-time access to link data, NOP Flits are an indispensable tool for ensuring reliable operation of next-generation interconnects.

Further information
