As design sizes continue to grow, proliferation of internal and external protocols, along with aggressive power requirements are driving an explosion in the number of asynchronous clocks in today’s SoCs. This demands that design and verification teams spend an increasing amount of time verifying the correctness of asynchronous boundaries in the design. Incorrect asynchronous boundaries can lead to multiple design defects not encountered in simpler designs.
Metastability is one of the major defects. A flip-flop has metastability issues if the clock and data change very closely in time, causing the output to be at an unknown logic value for an unbounded period of time. While metastability cannot be eliminated, it is usually tolerated by adding a multi-flop synchronizer to control asynchronous boundaries and using those synchronizers to block the destination of an asynchronous boundary when its source is changing. FIFOs, 2-phase and 4-phase handshakes are typical structures used for this type of synchronization.
Glitches on asynchronous boundaries can also cause defects, since a glitch on an asynchronous crossing can trigger the capture of an incorrect signal transition. Data coherency issues occur in a design when multiple synchronizers settle to their new values in different cycles and subsequently interact in downstream logic. The list goes on. While the concepts and methodologies for verification of such issues have been extensively researched in the past ten years, practical solutions have been offered primarily at the IP-level. Little work has been attempted to tackle clock domain crossing (CDC) verification signoff of large system-on-chip (SoC) designs.
Examples of CDC Issues:
1) Data Loss in Fast to Slow Xfer
2) Improper Data Enable Sequence

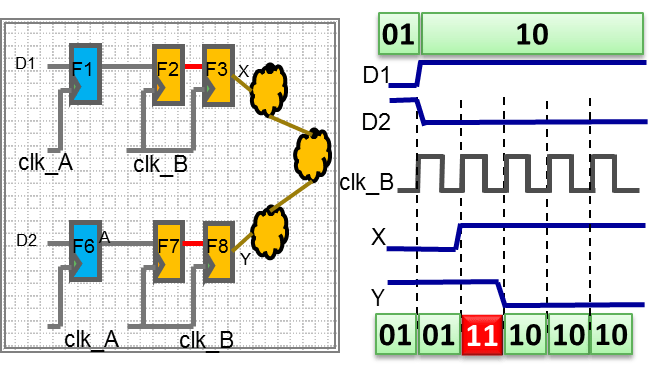

3) Re-Convergence of Synced Signals
4) Reset Synchronization
CDC for IP Blocks
CDC analysis at the IP level requires some care – there are multiple factors related to which clocks are truly asynchronous, which clocks can be simultaneously active, which crossings are allowed to operate without standard synchronizers (for example, configuration signals which are known to be static through most of the operation of the system) and more. All of this is very manageable at the IP level but can quickly become overwhelming at the SoC level without a disciplined methodology.
CDC for Entire SoC
For a typical SoC (as shown below) you often have multiple peripheral interfaces, high performance internal compute engines, accelerators and bus fabric, hence multiple clock domains, also multiple power domains and, quite probably, dynamic voltage and frequency selection in several of these domains. Approaching CDC analysis of this system requires a systematic methodology.
Sample SoC Architecture
Flat SoC Verification
In flat SoC verification, the entire SoC is verified in a single run. Flat SoC verification covers all the critical issues briefly described above: Metastability, glitches and loss of coherency in addition to functional requirements of the asynchronous interfaces and other critical issues across data, control, clock and reset circuitry. The size and complexity of a design is no excuse for missing a CDC bug.
The main advantage of flat SoC verification is setup simplicity. Typically, clocks, modes and other design constraints are available at the chip level, and therefore design setup for CDC verification is straightforward. This is a significant advantage as proper setup is key to effective CDC verification and can avoid long signoff iterations.
There are several disadvantages to flat CDC verification for large SoC. Performance is first and foremost as the analysis doesn’t scale across large designs. Additionally the number of issues identified can be overwhelming. Additionally, SoCs are sometimes assembled late in the design cycle. When this is the case, identifying critical CDC issues after assembly will lead to multiple long iterations between block design and SoC assembly which could impact the schedule and quality of the SoC implementation.
There are several common practices to address the challenges of CDC analysis at the SoC level. They include:
Other considerations:
Page contents originally provided by Atrenta
